ENGINE
POWER
TORQUE
Engine Cooling
250NK
Tech

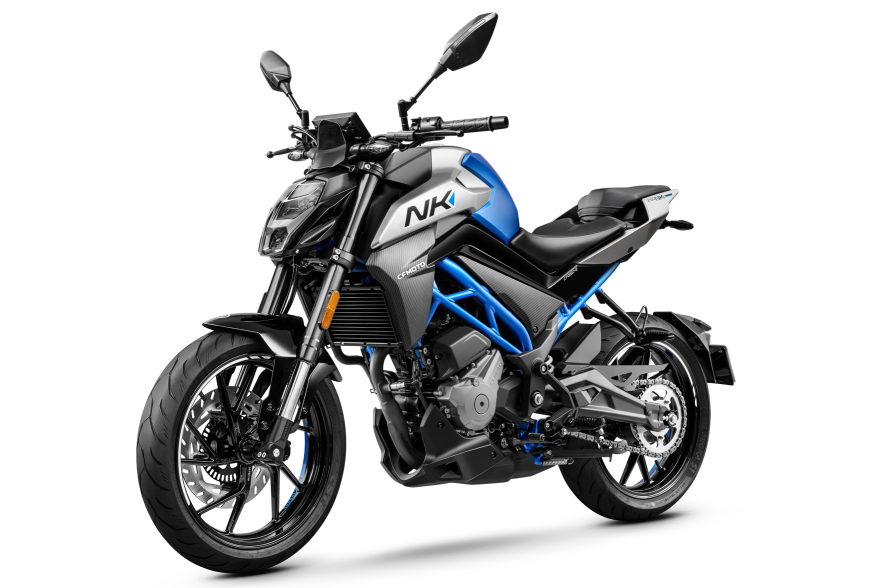

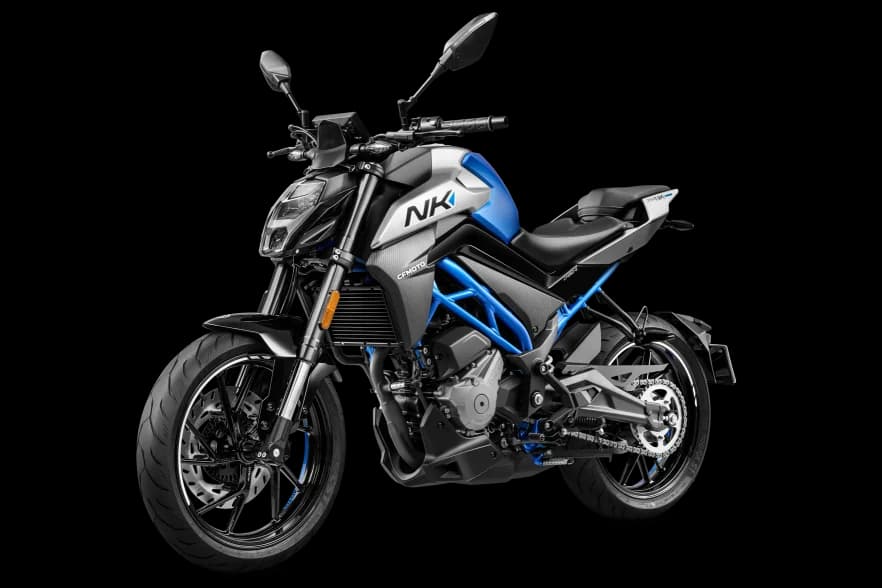

Specification

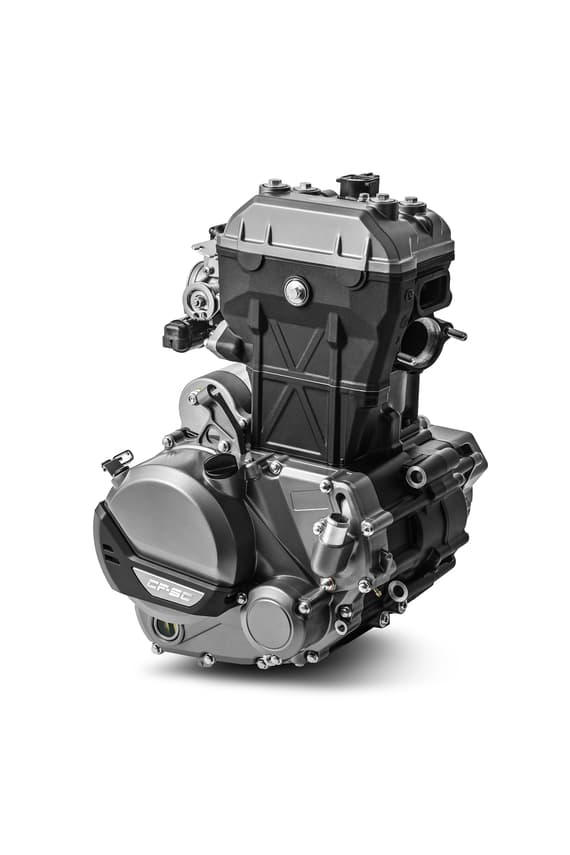

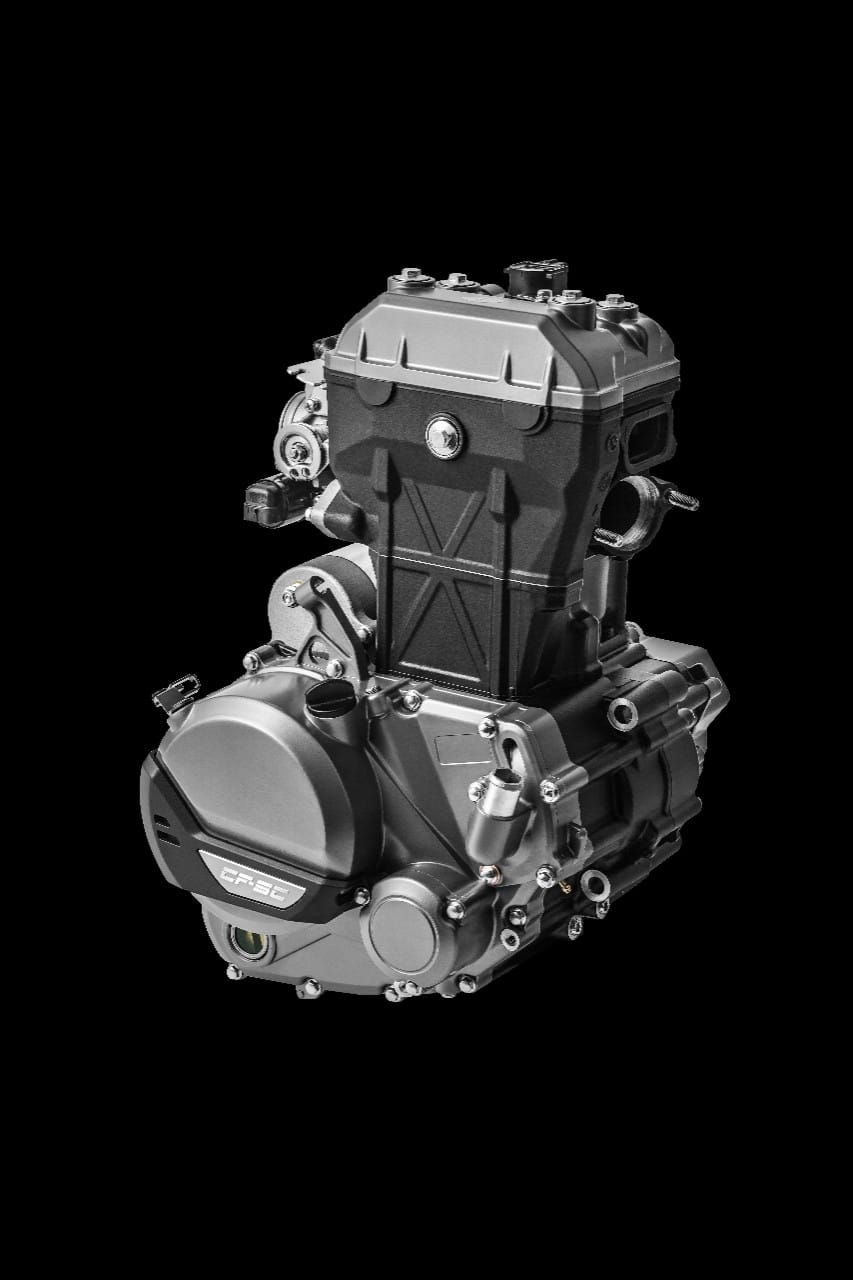

| Engine Type : | Single-cylinder, liquid-cooled, DOHC 4 Valve |
| Displacement : | 249cc |
| Bore x Stroke : | 72 x 61.2 mm |
| Compression ratio: | 11.3 : 1 |
| Starting method: | Electric |
| Maximum Power: | 27.5 BHP@ 9750 RPM |
| Maximum Torque: | 22 N.m @ 7500 rpm |
| COMPRESSION RATIO: | 11.3：1 |
| Fuel Supply system: | Fuel Injector ( BOSCH) |
| Transmission system: | 6-speed, Wet Multiple Clutch |
| Transmission Drive System: | Drive Chain |
| Length x Width x Height: | 1990×780×1070 mm |
| Wheelbase : | 1360 mm |
| SEAT HEIGHT: | 795 mm |
| Minimum Ground Clearance: | 150 mm |
| Weight: | 151 kg |
| Fuel Capacity: | 12.5L |
| Colors: | Athens Blue/Nebula Black |

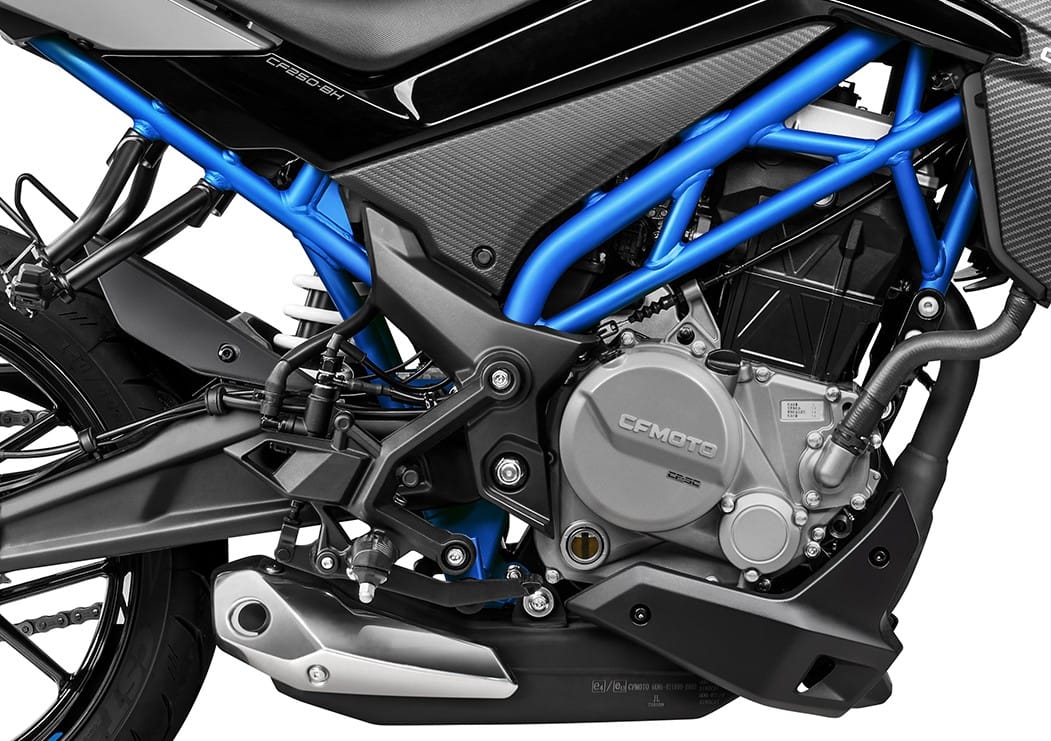

| Chassis: | Trellis Frame |
| Front Suspension: | Φ37 mm USD Forks (132 mm) |

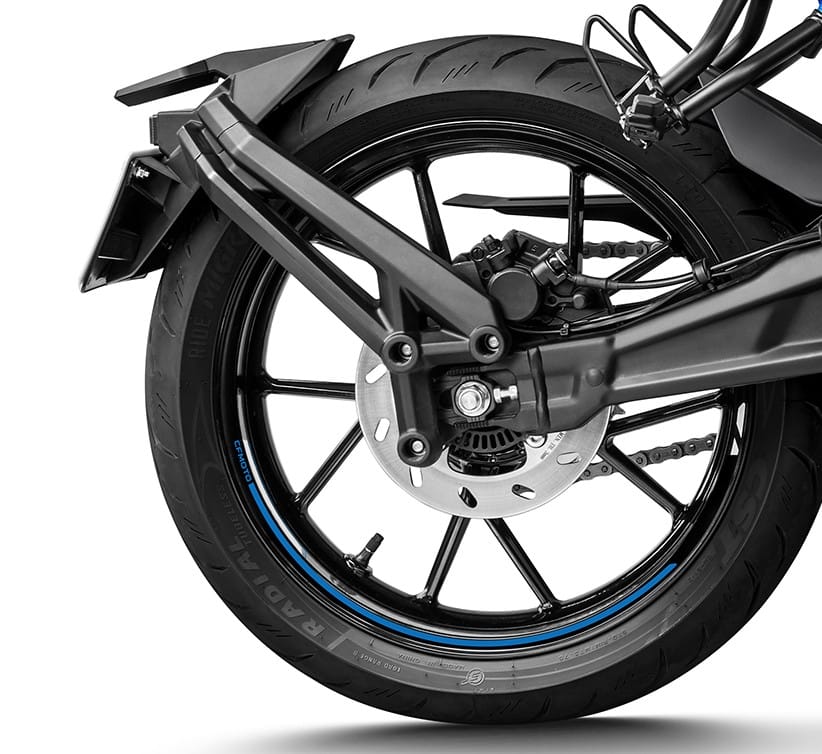

| Rear Suspension: | Cantilever Pre Loded adjuster Mono ShockAbsorber |

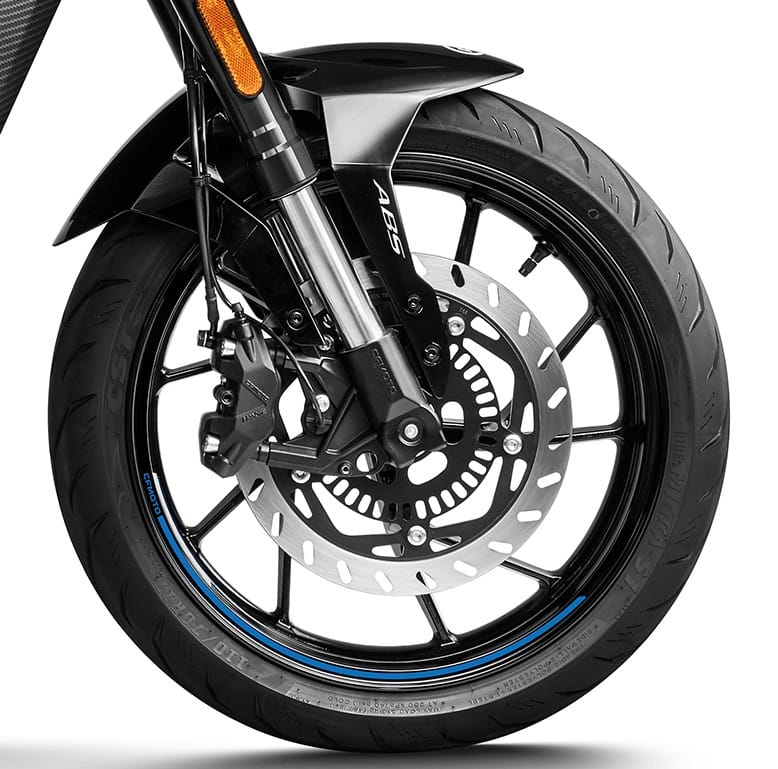

| Brake (Front/Rear): | Front Φ292mm disc, opposed 4-piston caliper and rear Φ220mm disc, single-piston |
| ABS SYSTEM: | Dual Channel ABS |
| Meter : | Full Digital Instrument Panel |
| Front Tire: | 110/70 R17 M/C 54H |
| Rear Tire: | 140/60 R17 M/C 63H |
| Battery: | 12v/9Ah |
| Stearing Handelbar: | Clip On Handelbar |
| Mode: | ECO & SPOT |
